AudioCodes manipulation in software 7.6

Software 7.6 message manipulation is a table of Message Type, Condition, Action Subject, Action Type, and Action Value, assigned to an IP group.

Learn in 5 minutes

  1. Name the five table fields
  2. Name the documented action types
  3. Treat the menu as release-specific

Visual

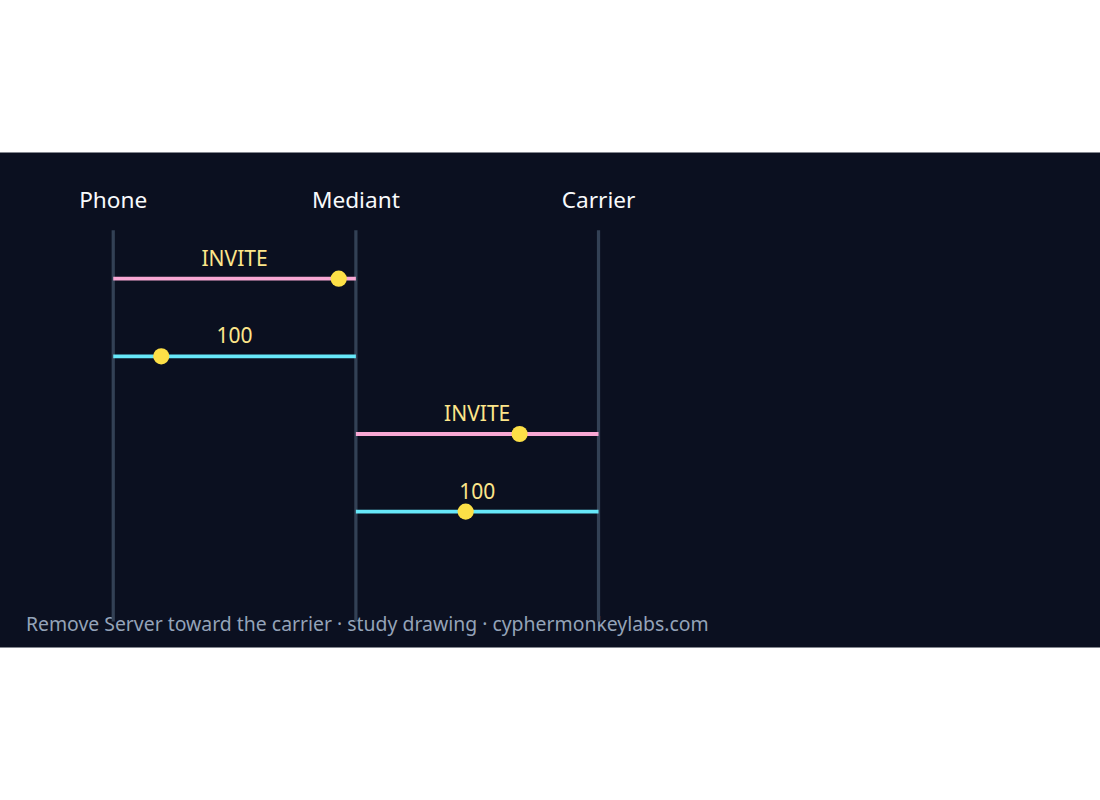

Remove Server toward the carrier · study drawing · cyphermonkeylabs.com PhoneMediantCarrier INVITE 100 INVITE 100

SVG HTML PNG

The menu that opens this table changes by release.

Worked example

Read one 7.6 row Which column contains Remove?

  1. Find Action Type.
  2. Find Action Subject.
  3. Leave Condition’s grammar in the syntax guide.

Vendor menus, ports, and license names change. Confirm before relying on a sentence that is not an RFC.

Fault

Server still arrives from the carrier and is forwarded inward. The manipulation set is assigned outbound only.

The 200 OK is arriving from the carrier, which is the inbound direction on that IP group.

Quiz

Software 7.6 manipulation fields include


Remove is


Normalize is


The manipulation set is assigned to


The menu location is


Add Prefix and Remove Suffix are


Ecosystem

Glossary, sister systems, and the integration seam for this room.

Analytics Amazon Connect can attach conversational analytics to an external voice system with a SIPREC connector. The analytics plane is not a second SIP proxy for the customer call.
