Three manipulation grammars

CUBE, Oracle HMR, and AudioCodes 7.6 can each remove a header. The grammars are not interchangeable.

Learn in 5 minutes

  1. Match a snippet to its product
  2. Keep rule order in mind on each product
  3. Stop pasting one syntax into another box

Visual

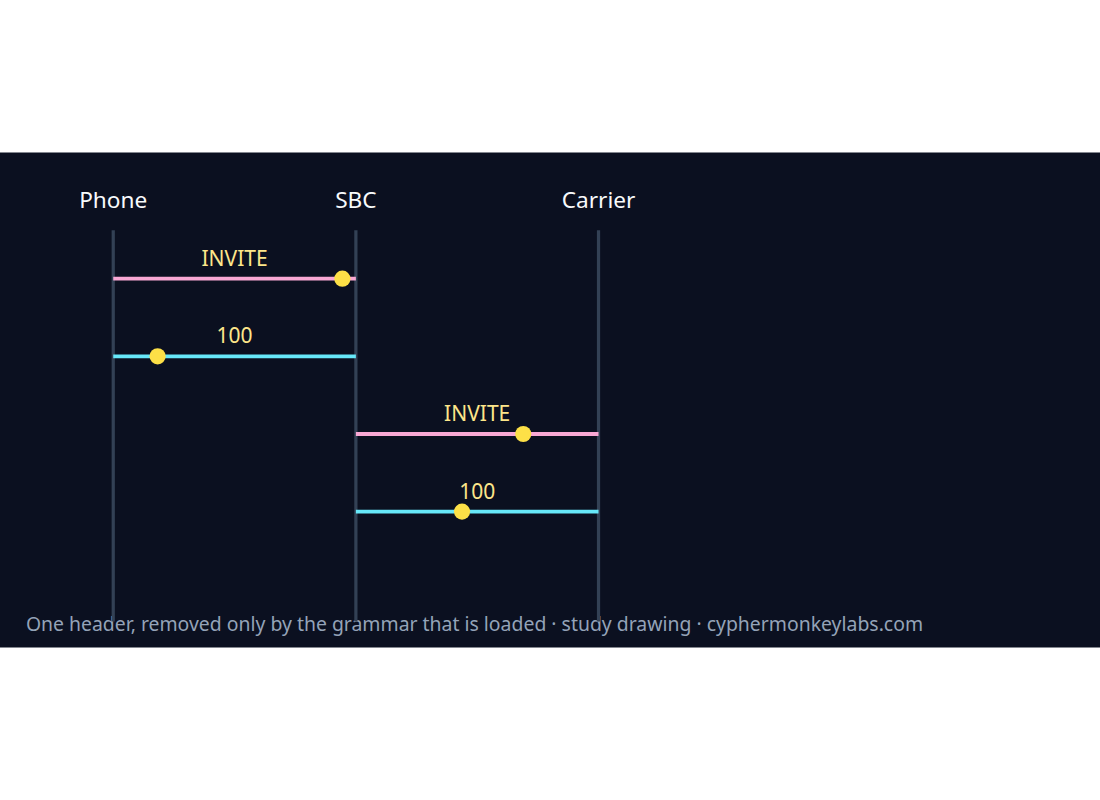

One header, removed only by the grammar that is loaded · study drawing · cyphermonkeylabs.com PhoneSBCCarrier INVITE 100 INVITE 100

SVG HTML PNG

Removing Server or Diversion is the job. The text is product-specific.

Worked example

Identify the row Three fragments are printed. Which one is the AudioCodes 7.6 action?

  1. Find the CUBE line.
  2. Find the Oracle block.
  3. Find Action Type.

Vendor menus, ports, and license names change. Confirm before relying on a sentence that is not an RFC.

Fault

The Oracle configuration was saved with a CUBE profile line where a header-rule was required. Server is unchanged.

The configuration text is a sip-header line, not a header-rule.

Quiz

request INVITE sip-header Diversion remove is


action delete belongs to


Action Type Remove belongs to


Oracle rule order is


Pasting a CUBE profile line into Oracle


Ribbon’s absence from the syntax table means


Ecosystem

Glossary, sister systems, and the integration seam for this room.

CRM Screen pop uses data the contact center already has: ANI, DNIS, case id. Those values may arrive in SIP headers or in a CTI event after the call is up. The CRM is not a SIP element.
