Oracle SBC objects

Oracle Communications SBC, formerly Acme Packet, is configured with realms, interfaces, session agents, and manipulation objects.

Learn in 5 minutes

  1. Name the objects the 10.1 docs use
  2. Attach a manipulation inbound or outbound
  3. Leave element-rule syntax in the configuration guide

Visual

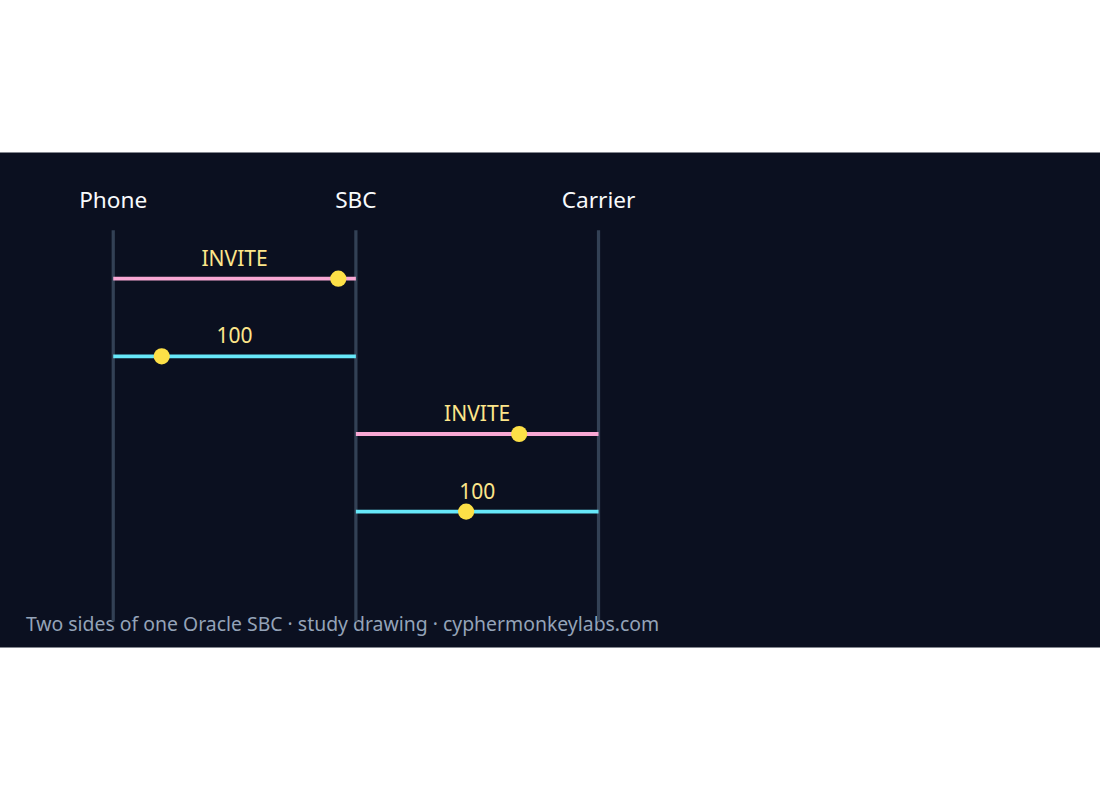

Two sides of one Oracle SBC · study drawing · cyphermonkeylabs.com PhoneSBCCarrier INVITE 100 INVITE 100

SVG HTML PNG

This is a vocabulary list from the documentation, not a command script.

Worked example

Name the attachment These are documentation object names. Which one selects manipulation for messages leaving?

  1. Read the list as vocabulary.
  2. Separate interface objects from manipulation objects.
  3. Pick the outbound attachment.

Vendor menus, ports, and license names change. Confirm before relying on a sentence that is not an RFC.

Fault

A header rule was written to delete Server, and the carrier INVITE still contains Server: ExampleProxy/1.0.

The egress request still shows the header.

Quiz

Oracle Communications SBC was formerly


A session-agent is


out-manipulationid selects


A sip-manipulation contains


An element-rule


A sip-interface is


Ecosystem

Glossary, sister systems, and the integration seam for this room.

Workforce management WFM forecasts volume and builds schedules. It consumes contact-center events. It does not parse Via headers. When a forecast is wrong, the SIP symptom is usually queue delay and 480 or carrier congestion, not a broken dialog ID.
